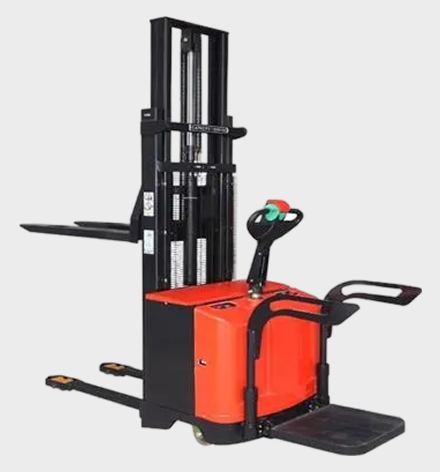

| Model | AGBDST 15.25 |
|---|---|
| Rated Capacity (Q) | 1500 Kgs |
| Lifting Height (h3) | 2500 mm |
| Load Center (C) | 500 mm |
| Maximum Machine Height (h4) | 3060 mm |
| Handle Height (h2) | 1450 – 1460 mm |
| Fork Size (LXN) | 1150 X 160 mm |
| Width Over Forks (E) | 570 mm |
| Minimum Turning Radius (WA) | 1620 mm |
| Wheel Base (Y) | 1340 mm |
| Front – Wheel Distance (X) | 339 mm |
| Maximum Speed Without Load | 4.5~6 Km/h |
| Maximum Speed With Load | 4~5 Km/h |
| Driving Motor | 24V / 1.2~3 Kw |
| Lifting Motor | 24V / 2~3 Kw |
| Aneroid Battery | 24V / 210 Exide |
| Charger | 24V / 30A |
| Overall Length (L) | 2000 mm |
| Overall Width (W) | 860 mm |
| Overall Height (h1) | 1830 mm |
| Overall Net Weight Approximately | 695 Kgs |
