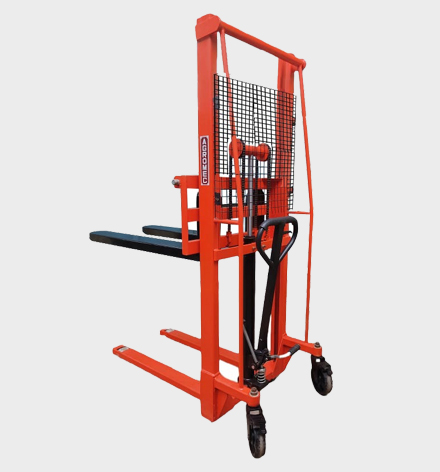

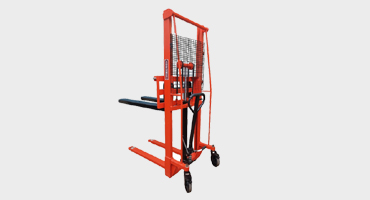

Manual Heavy Duty Stackers

specifications of manual heavy duty stackers

model	AGST1015B	AGST1515A	AGST2015	AGST2020N
Load Capacity	1000 Kgs	1500 Kgs	2000 Kgs	2000 Kgs
Lifting Height	1500 mm	1500 mm	1500 mm	2000 mm
Fork Length	1150 mm	1150 mm	1000 mm	1150 mm
Fork Arm Width	770	770	762	620
Outside Fork Spread	300 - 850 mm	300 - 850 mm	300 - 850 mm	300 - 850 mm
Inside Fork Spread	Adjustable	Adjustable	Adjustable	Adjustable
Maximum Fork Height	1600 mm	1600 mm	2000 mm	2000 mm
Minimum Fork Height	85 mm	85 mm	90 mm	85 mm
Ground Clearance	35 mm	35 mm	35 mm	35 mm
Fork Width	150 mm	150 mm	150 mm	150 mm
Overall Height in Closed Position	2000 mm	2000 mm	2000 mm	2000 mm
