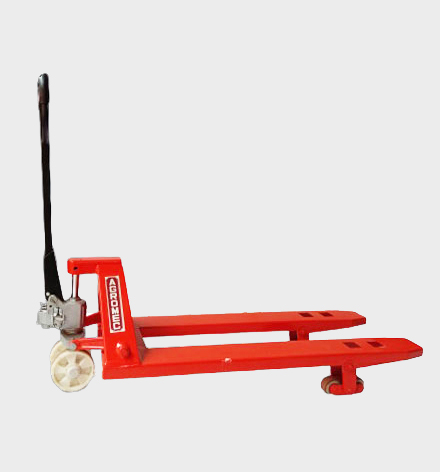

| Model | AGLW -250 (Commercial Duty Pallet Truck) |
|---|---|
| Capacity | 2500 Kgs |
| Lift | 122 mm |
| Overall Width | 550 mm |
| Fork Length | 1220 mm |
| Fork Width | 152 mm |
| Front Wheels | 175 x 50 mm |
| Rear Wheels | Dia 78 mm |
| Minimum Pallet Gap | 80 mm |
| Release System | Hand & Foot Lever Both |
| Plate Thickness | 4 + Paint Thickness mm |
| Self Weight | 98 Kgs |
| MODEL NO | AQST-250 (Heavy Duty) Make in INDIA |
AGLW-250 (Commercial Duty Pallet Truck) Make in INDIA |
|---|---|---|
| Self-Weight (Approximately) | 160 Kgs | Max 98 Kgs |
| Wheels Options | UHMW Nylon / CI / Steel | PU / Nylon |
| Standard Wheels | UHMW Solid Wheels | Wear & Tear Nylon |
| Load Wheels Frame | M.S Heavy Duty With Bushes | M.S Heavy Duty With Bushes |
| Release Pedal | By Foot Lever With Cartilage System (No Maintenance) | By Foot Lever & Hand Lever Type (No Maintenance) |
| Wearing Points | Special Bushes Provided | Bushes Provided |
| Steering Handle | Very Sturdy Heavy Duty | Simple With Lever |
| Bearings | 6207 / 6205 With MS Dust Covers | 6205 / 6204 |
| PINS / Rear Axle | Hard & Ground to Mirror Finish EN-9 | Hard & Ground to Mirror Finish EN-9 |
| Cap Steering | Bearing 51106 With Solid M.S Extra Cap | Bearing 51106 |
| Compression Rods | Solid M.S Heavy Square Steel Rods | Solid M.S Square |
| Plate Thickness | 5 MM + Paint Thickness | 4 MM + Paint Thickness |
| Manifold | Heavy / Solid Without Spring (No Maintenance) | Built in Without Springs |
| Cross (Steering) | Heavy Duty Solid M.S With Bearings 6212 & 51112 | Heavy Duty Solid M.S With Bearing 6212 & 51112 |
| Hydraulic | M.S Heavy Duty Cylinder Dia 35 mm Piston Rod, Bronze Piston, High Quality Seals, Spring Loaded Bushes, With Spring (Easy Maintenance) | Dia 31.5 mm Piston Rod, M.S Piston, High Quality Seals, No Bushes, No Spring (Hydraulic) |
