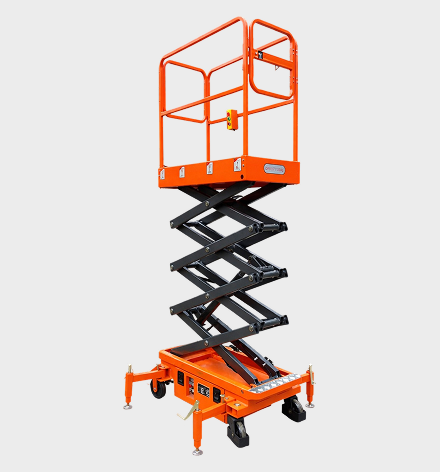

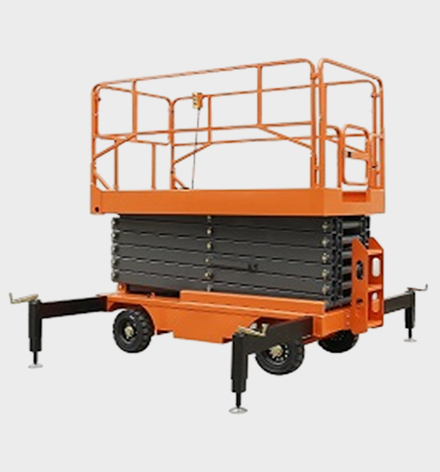

Semi Electric Scissor Lift Table

work platform / semi electric scissor lift table (hsn code : 84289090)

Model	AGBLSL	AGBLSL	AGBLSL	AGBLSL
Capacity	500 Kgs	500 Kgs	500 Kgs	500 Kgs
Platform Height	6000 mm	10000 mm	8000 mm	12000 mm
Minimum Platform Height	1050 mm	1300 mm	1175 mm	1425 mm
Platform Size	2270 x 1150 mm	2270 x 1150 mm	2270 x 1150 mm	2270 x 1150 mm
Developed Dimension (Legs)	2700 x 2200 mm	2700 x 2200 mm	2700 x 2200 mm	2700 x 2200 mm
Elevating Time	50 Sec	80 Sec	50 Sec	80 Sec
Electromotor Power	2.2 Kw	3 Kw	2.2 Kw	3 Kw
Voltage DC	24 V	24 V	24 V	24 V
Voltage AC	220 V	380 V	220 V	-
Overall Length	2540 mm	2540 mm	2540 mm	2540 mm
Overall Width	1300 mm	1300 mm	1300 mm	1300 mm
Overall Height (Guardrail Removed)	1730 mm	1980 mm	1855 mm	2105 mm
Overall Net Weight	1280 Kgs	1870 Kgs	1460 Kgs	2050 Kgs
Note	With extend platform is 900 mm length.
