Hydraulic Handlift Pallet Truck

| home

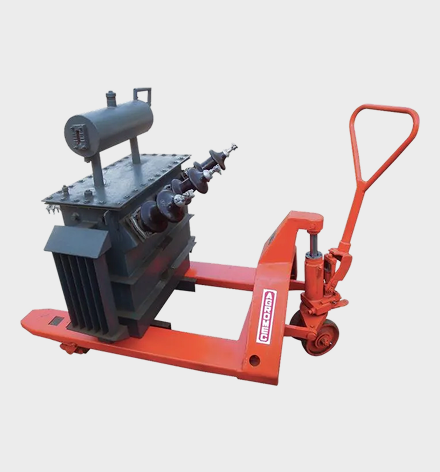

AGROMEC HYDRAULIC HANDLIFT PALLET TRUCKS FOR HANDLING OF TRANSFORMERS

Specifications

Model	AGTR 250	AGTR 300
Capacity	2500 Kgs	3000 Kgs
Lift	100 mm	100 mm
Overall Width	845 mm	845 mm
Fork Width	187 mm	187 mm
Gap Between Forks	472 mm	472 mm
Fork Length	1220 mm	1220 mm
Front Wheel 2 Nos.	200 * 50 Dia	200 * 50 Dia
Rear Wheel 4 Nos.	68 Dia	68 Dia
Minimum Pallet Gap	70 mm	70 mm
